BIMETAL THERMOMETER
BIMETAL_THERMOMETER

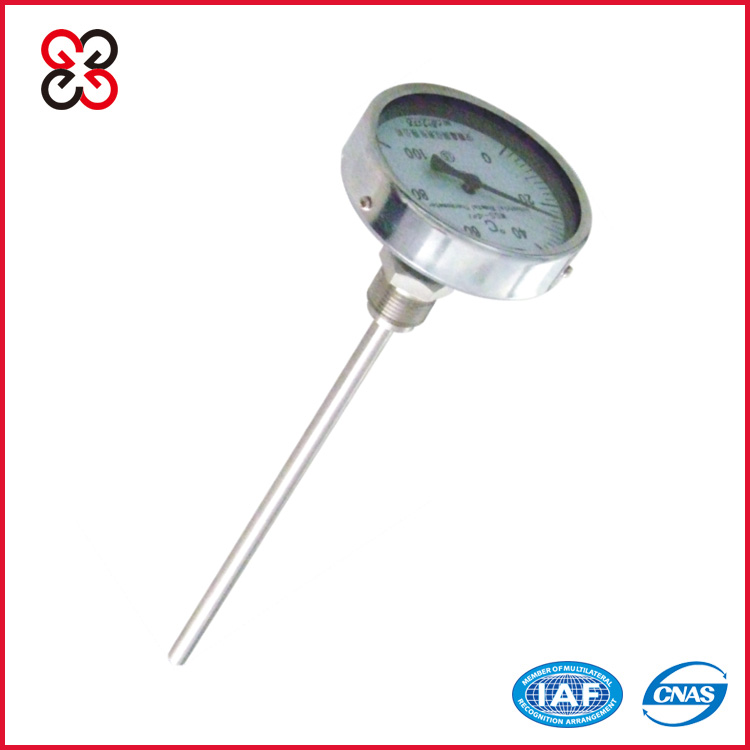

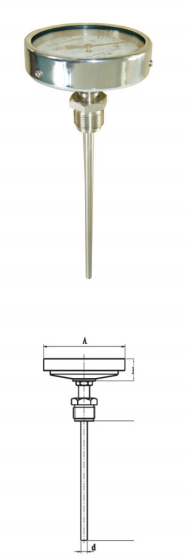

AXIAL BIMETAL THERMOMETER

browse:
add time: 2016-11-21 08:41:08
recommendation:

Description:



TEMPERATURE RANGE : -80-+40°C   -40-80°C   0-50°C   0-100°C   0-150°C   0-200°C   0-300°C   0-400°C    0-500°C

ACCURACY : 1.5

PROTECTION MATERIAL : 304  321  316  HASTELLOY-C-276

DIAL DIAMETER : 60mm  100mm  150mm

INSTALLATION METHOD : THREAD , FLANGE


STANDARD : JB/T8803-1998

THERMAL RESPONSE TIME : LESS 40S

PROTECTION LEVEL : IP65


ORDER SELECTION GUIDELINES :

DIAL DIAMETER

ACCURACY

INSTALLATION METHOD

TEMPERATURE RANGE

LENGTH OR IMMERSION LENGTH
